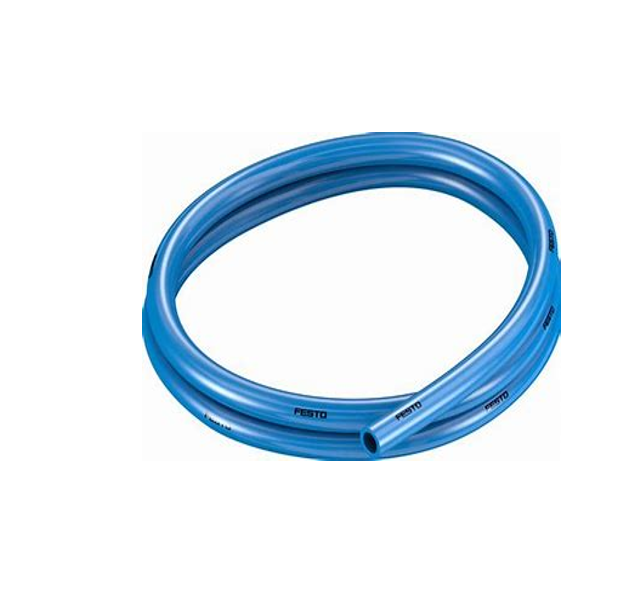

Festo – Polyurethane Tubing PUN-H-12X2-BL
₹151.00
The Festo PUN-H-12X2-BL is a flexible, hydrolysis-resistant polyurethane tubing with a 12 mm outer diameter and 2 mm wall thickness. Ideal for pneumatic systems, it offers high durability, kink resistance, and smooth airflow. Suitable for industrial automation, robotics, and humid environments, it ensures reliable performance and easy installation.
For bulk requirement send a RFI
Description
Festo – Polyurethane Tubing PUN-H-12X2-BL | Flexible Pneumatic Tube – 12mm OD, 2mm Wall, Blue
The Festo PUN-H-12X2-BL Polyurethane Tubing is a high-quality pneumatic hose designed for flexible, durable, and reliable fluid and air conveyance in industrial automation systems. Made with hydrolysis-resistant polyurethane, this tubing is ideal for dynamic applications where flexibility, kink resistance, and long service life are critical.
Festo’s PUN-H series is known for its versatility in pneumatic circuits, robotics, automotive manufacturing, packaging machinery, and other demanding environments. The PUN-H-12X2-BL model features an outer diameter of 12 mm and a wall thickness of 2 mm, offering a 10 mm internal diameter, which is optimal for medium to high air flow systems.
Engineered for Durability and Performance
The tubing is constructed from premium-quality polyurethane (PU) with hydrolysis resistance properties. This makes it especially suitable for use in humid or damp environments, such as in food processing lines, washdown areas, or outdoor applications. The PUN-H material remains soft and flexible even at low temperatures, ensuring minimal stress on fittings and easy routing in tight spaces.
Unlike traditional PVC or rubber hoses, Festo’s polyurethane tubing resists cracking, swelling, and chemical degradation over time, providing reliable long-term performance in both static and dynamic pneumatic systems.
Flexible and Kink-Resistant Design
The PUN-H-12X2-BL is designed to be highly flexible, with a small bending radius that allows it to be routed easily around corners and through complex machinery. Its kink-resistant structure helps maintain consistent airflow without pressure drops, even when bent during installation or in moving machinery.
This makes it ideal for applications involving robotic arms, pneumatic cylinders, pick-and-place units, and any system requiring frequent movement or tight routing paths.
Pressure and Temperature Resistance
This tubing is rated for:
-
Operating Pressure: Up to 10 bar (depending on temperature and application)
-
Temperature Range: -35°C to +60°C
This makes it suitable for most standard pneumatic setups and safe for use in both refrigerated areas and hot industrial environments. The tubing maintains its elasticity and dimensional stability across this wide range.
Chemical and Environmental Resistance
The PUN-H series offers good resistance to hydrolysis, microbes, and various cleaning agents. This makes it suitable for:
-
Food and beverage environments (dry air supply only)
-
Laboratories
-
Industrial machinery in humid zones
-
Outdoor pneumatic systems with occasional water exposure
Note: The tubing is not suitable for direct contact with food-grade fluids unless otherwise certified.
Color-Coded for Easy Identification
The “BL” at the end of the product code indicates Blue color, which provides visual distinction for organizing different air lines or media in complex systems. Festo’s PUN-H tubing is also available in multiple colors for multi-line setups and maintenance-friendly installations.
Technical Specifications:
| Parameter | Value |
|---|---|
| Product Name | Festo PUN-H-12X2-BL |
| Outer Diameter (OD) | 12 mm |
| Wall Thickness | 2 mm |
| Inner Diameter (ID) | 10 mm |
| Material | Polyurethane (Hydrolysis-resistant) |
| Temperature Range | -35°C to +60°C |
| Operating Pressure | Up to 10 bar |
| Color | Blue |
| Bend Radius | Small (Highly flexible) |
| Roll Length | Typically 50m or 100m (varies by supplier) |
Key Features:
-
High flexibility with kink resistance
-
Hydrolysis and microbial resistant polyurethane
-
Long service life in dynamic applications
-
Suitable for high-speed automated systems
-
Temperature and pressure tolerant
-
Ideal for tight installation spaces
-
Compatible with Festo push-in fittings and pneumatic components
Applications:
-
Pneumatic control systems
-
Robotics and automation lines
-
Packaging and bottling plants
-
Food and beverage industry (non-contact air supply)
-
Pick-and-place systems
-
Material handling equipment
-
General industrial air conveyance
Why Choose Festo Tubing?
Festo is a global leader in automation technology and pneumatic systems. Their tubing products are manufactured to exacting standards, ensuring superior performance, dimensional accuracy, and long-term reliability. With the PUN-H-12X2-BL, you get a dependable solution that integrates seamlessly into any professional pneumatic setup.
Order the Festo PUN-H-12X2-BL today for top-tier tubing performance backed by industry-leading engineering. Reliable, flexible, and built to last—Festo tubing is the professional’s choice.
