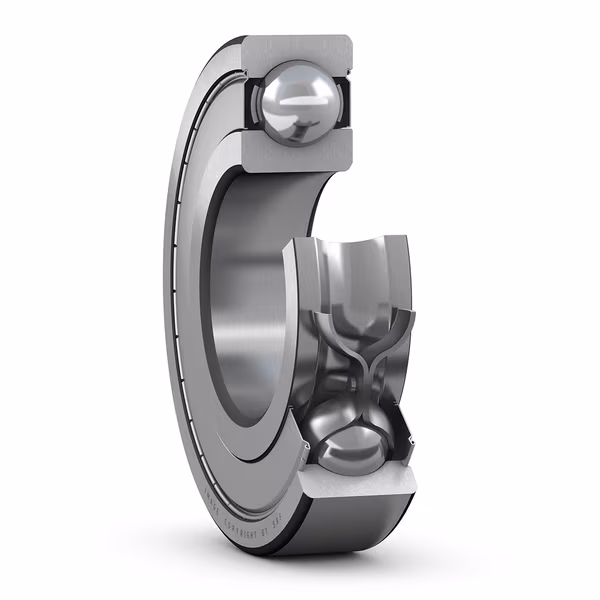

SKF – 6207-2Z – Single Row Deep Groove Ball Bearing

The SKF 6207-2Z is a high-performance, single row deep groove ball bearing designed to deliver exceptional reliability, efficiency, and durability across a wide range of mechanical and industrial applications. As part of SKF’s renowned Explorer series, this bearing is engineered for high-speed performance, low friction, and long service life, making it a preferred choice for professionals in manufacturing, automotive, and machinery sectors.

---

Design and Construction

The SKF 6207-2Z features a single row deep groove design, which allows it to accommodate radial loads and moderate axial loads in both directions. Its deep raceway grooves and close conformity between the balls and raceways enable smooth, quiet operation and high load-carrying capacity.

This bearing is equipped with metal shields on both sides (2Z), which provide effective protection against dust and other contaminants while retaining the lubricant inside. The shields are non-contact, ensuring minimal friction and allowing for high-speed operation without compromising performance.

---

Key Specifications

• Bore Diameter: 35 mm
• Outer Diameter: 72 mm
• Width: 17 mm
• Basic Dynamic Load Rating: 27 kN
• Basic Static Load Rating: 15.3 kN
• Reference Speed: 20,000 rpm
• Limiting Speed: 10,000 rpm
• Weight: Approximately 0.3 kg
• Sealing: 2Z (Metal shields on both sides)
• Cage Material: Pressed steel
• Internal Clearance: CN (Normal)
• Lubrication: Grease-filled
• SKF Performance Class: SKF Explorer
  1

---

Performance and Benefits

1. High-Speed Capability
   With a reference speed of 20,000 rpm and a limiting speed of 10,000 rpm, the 6207-2Z is ideal for high-speed applications such as electric motors, fans, and compressors.
2. Low Friction and Noise
   The bearing is optimized for low friction and minimal vibration, ensuring smooth and quiet operation. This makes it suitable for noise-sensitive environments like HVAC systems and home appliances.
3. Durability and Long Service Life
   As part of the SKF Explorer series, the 6207-2Z is manufactured using advanced materials and heat treatment processes that enhance fatigue resistance and reduce wear, resulting in extended bearing life.
4. Maintenance-Free Operation
   The metal shields help retain grease and keep contaminants out, reducing the need for relubrication. This makes the bearing ideal for applications where maintenance access is limited or infrequent.
5. Versatile Load Handling
   The bearing can handle both radial and axial loads, making it suitable for a wide range of applications, from industrial machinery to automotive systems.

---

Applications

The SKF 6207-2Z is widely used in:

• Electric Motors and Generators: Ensures efficient, quiet, and long-lasting performance.
• Pumps and Compressors: Withstands high-speed rotation and pressure variations.
• Industrial Gearboxes and Conveyors: Handles combined loads and ensures operational reliability.
• Fans and Blowers: Reduces noise and vibration in HVAC systems.
• Automotive Systems: Commonly used in transmissions, clutches, and wheel hubs.
• Home Appliances: Found in washing machines, dryers, and other household equipment.

---

Installation and Compatibility

The bearing features a cylindrical bore for easy mounting on standard shafts. It is compatible with a wide range of housings and can be used in both horizontal and vertical orientations. The standard CN internal clearance ensures optimal performance in most general-purpose applications.

---

Environmental and Safety Compliance

SKF manufactures the 6207-2Z in compliance with RoHS and REACH regulations, ensuring it meets global environmental and safety standards. The production facilities are certified to ISO 9001 and ISO 14001, reflecting SKF’s commitment to quality, safety, and sustainability.

---

Key Features at a Glance:

• Design: Single row deep groove ball bearing
• Sealing: 2Z – Metal shields on both sides
• Load Handling: Radial and axial loads in both directions
• Speed: High-speed capability up to 20,000 rpm
• Material: High-grade bearing steel with pressed steel cage
• Maintenance: Low-maintenance, grease-retaining design
• Applications: Motors, pumps, gearboxes, fans, and more
• Compliance: Meets international safety and environmental standards

---

Conclusion

The SKF 6207-2Z Single Row Deep Groove Ball Bearing is a robust, high-performance component that delivers precision, reliability, and efficiency. Whether you’re designing new equipment or maintaining existing systems, the 6207-2Z offers a dependable solution backed by SKF’s legacy of engineering excellence.
