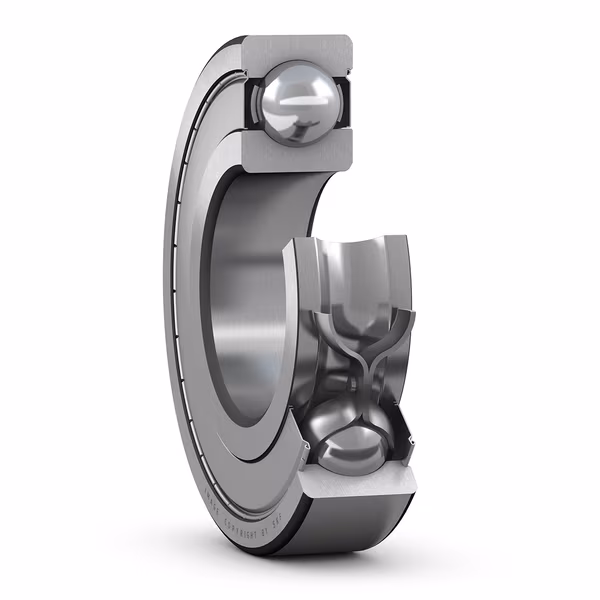

SKF – 6205-2Z – Single Row Deep Groove Ball Bearing

The SKF 6205-2Z is a high-performance, single row deep groove ball bearing designed for reliability, efficiency, and long service life. Engineered by SKF, a global leader in bearing technology, this bearing is ideal for a wide range of industrial and mechanical applications where durability, low friction, and high-speed capability are essential.

---

Design and Construction

The SKF 6205-2Z features a single row of precision steel balls housed within deep raceway grooves. This configuration allows it to support radial and axial loads in both directions, making it highly versatile. The bearing is equipped with metal shields (2Z) on both sides, which protect the internal components from contaminants while retaining the lubricant inside.

Key Dimensions:

• Bore Diameter: 25 mm
• Outer Diameter: 52 mm
• Width: 15 mm
• Weight: Approximately 140 grams (0.309 lbs)

The bearing is manufactured from high-grade bearing steel, ensuring excellent resistance to wear, fatigue, and corrosion. The cage is made from sheet steel, providing strength and stability to maintain ball spacing and reduce friction.

---

Performance Specifications

The SKF 6205-2Z belongs to the SKF Explorer performance class, which means it is optimized for:

• Low noise and vibration
• High-speed operation
• Extended service life

Performance Ratings:

• Basic Dynamic Load Rating: 14.8 kN
• Basic Static Load Rating: 7.8 kN
• Reference Speed: 28,000 rpm
• Limiting Speed: 14,000 rpm
  1

These specifications make the 6205-2Z suitable for applications requiring high rotational speeds and minimal maintenance.

---

Functional Advantages

1. Sealed Protection: The 2Z metal shields provide a barrier against dust and debris, extending the bearing’s operational life.
2. Low Friction: The deep groove design and precision manufacturing reduce friction, enhancing energy efficiency.
3. Quiet Operation: Ideal for noise-sensitive environments due to its optimized internal geometry.
4. Maintenance-Free: Pre-lubricated with high-quality grease, eliminating the need for regular relubrication.
5. Versatile Load Handling: Capable of managing both radial and axial loads, even at high speeds.

---

Applications

The SKF 6205-2Z is widely used across various industries due to its adaptability and robust performance. Common applications include:

• Electric Motors: Ensures smooth and efficient operation in both industrial and consumer-grade motors.
• Automotive Systems: Used in gearboxes, alternators, and wheel hubs.
• Industrial Equipment: Integral to pumps, compressors, fans, and conveyors.
• Home Appliances: Found in washing machines, dryers, and HVAC systems.
• Agricultural Machinery: Supports reliable operation in tractors, harvesters, and tillers.

Its ability to perform under varying loads and speeds makes it a preferred choice for engineers and maintenance professionals.

---

Material and Compliance

Constructed from chrome steel, the SKF 6205-2Z offers excellent hardness and fatigue resistance. It is:

• RoHS Compliant
• REACH Compliant

These certifications ensure that the bearing meets international environmental and safety standards, making it suitable for global applications.

---

Mounting and Compatibility

The bearing features a cylindrical bore for easy mounting on shafts. It is compatible with a wide range of housings and can be used in paired or back-to-back arrangements for increased load capacity or specific application requirements.

---

Customization and Variants

While the 6205-2Z comes with metal shields on both sides, SKF also offers other variants to suit different environments:

• 6205-2RS: With rubber seals for enhanced protection against moisture and contaminants.
• 6205 Open Type: Without seals or shields for applications where external lubrication is provided.

These options allow users to select the most appropriate configuration for their specific needs.

---

Conclusion

The SKF 6205-2Z Single Row Deep Groove Ball Bearing is a reliable, high-performance solution for a wide range of mechanical systems. Its combination of durability, speed capability, and low maintenance makes it a top choice in industries ranging from automotive to home appliances. Whether you’re designing new equipment or replacing worn components, the SKF 6205-2Z delivers the performance and longevity you can count on.
