Description

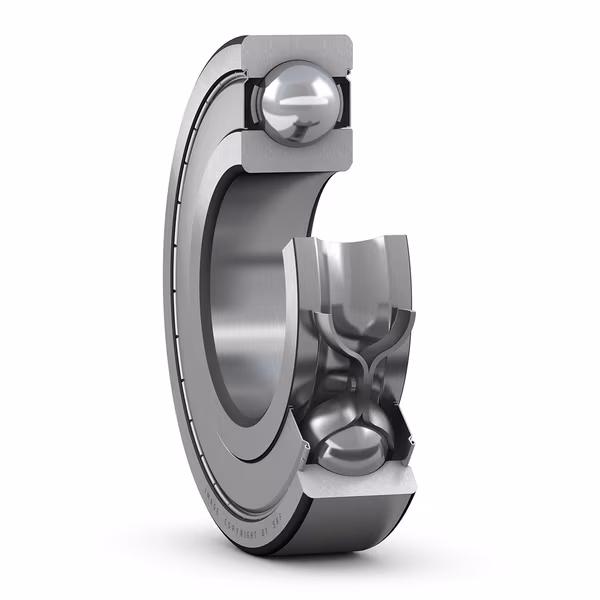

The SKF 6205 2Z/C3 is a single row deep groove ball bearing. Here are some key features and specifications:

Design: Single row deep groove ball bearing with shields on both sides.
Dimensions: Bore diameter of 25 mm, outside diameter of 52 mm, and width of 15 mm1.
Material: Made from bearing steel with a sheet metal cage1.
Sealing: Non-contact shields on both sides to keep lubricant in and contaminants out1.
Internal Clearance: C3 clearance, which means it has greater internal clearance than standard bearings 1.
Performance:
Basic dynamic load rating: 14.8 kN
Basic static load rating: 7.8 kN
Reference speed: 28,000 r/min
Limiting speed: 14,000 r/min.
